UniFi on Kubernetes - Configuring WPA-EAP-TLS WiFi
A little while ago I migrated my UniFi Controller to Kubernetes, part of that process involved migrating my WPA2 Enterprise WiFi network in to the cluster. It’s quite an involved process and not one I’ve seen anyone try to do, so this post is going to look at how you can do that integration…as well as some of the reasons you might not want to do it in the real world! This is probably the most niche thing I’ve ever written and I struggle to imagine that anyone other than me will ever want to do such a thing…but hopefully someone else will find this useful one day :)
The configs for this post can be found in GitHub here.
This project has 4 main requirements:
-
A Certificate Authority which can issue TLS certificates. I have already covered setting up a PKI within Kubernetes using cert-manager, and that’s what I’m going to be using in this example.
-
A RADIUS server which can function as part of a PKI with our Certificate Authority.
-
A LoadBalancer controller (I will also be exposing our RADIUS server via an external LoadBalancer, for reasons we’ll come back to), we’ll be using MetalLB, I have already covered the setup of MetalLB here. Any LoadBalancer is fine.
-
The UniFi Controller.
Configuring freeradius
I’m going to be building on the deployment method suggested by freeradius-k8s by stanislaspiron. It is a wrapper around the official freeradius image that works well and means we don’t have to go re-inventing the wheel too much.
First we’ll need to configure our freeradius config files as below:
#--eap
eap {
default_eap_type = tls
timer_expire = 60
ignore_unknown_eap_types = no
cisco_accounting_username_bug = no
max_sessions = ${max_requests}
tls-config tls-common {
private_key_file = /etc/ssl/private/tls.key
certificate_file = /etc/ssl/certs/tls.crt
ca_file = /etc/ssl/certs/ca.crt
dh_file = ${certdir}/dh
random_file = /dev/urandom
ca_path = ${cadir}
cipher_list = "DEFAULT"
ecdh_curve = "prime256v1"
cache {
enable = no
}
ocsp {
enable = no
}
}
tls {
tls = tls-common
}
}
#--radiusd.conf
prefix = /opt
exec_prefix = ${prefix}
sysconfdir = ${prefix}/etc
localstatedir = ${prefix}/var
sbindir = ${exec_prefix}/sbin
logdir = ${localstatedir}/log/radius
raddbdir = ${sysconfdir}/raddb
radacctdir = ${logdir}/radacct
name = radiusd
confdir = ${raddbdir}
modconfdir = ${confdir}/mods-config
certdir = ${confdir}/certs
cadir = ${confdir}/certs
run_dir = ${localstatedir}/run/${name}
db_dir = ${raddbdir}
libdir = ${exec_prefix}/lib
pidfile = ${run_dir}/${name}.pid
correct_escapes = true
max_request_time = 30
cleanup_delay = 5
max_requests = 16384
hostname_lookups = no
log {
destination = stdout
colourise = yes
file = ${logdir}/radius.log
syslog_facility = daemon
stripped_names = no
auth = yes
auth_badpass = no
auth_goodpass = no
msg_denied = "You are already logged in - access denied"
}
checkrad = ${sbindir}/checkrad
ENV {
}
security {
allow_core_dumps = no
max_attributes = 200
reject_delay = 1
status_server = yes
allow_vulnerable_openssl = no
}
proxy_requests = yes
$INCLUDE proxy.conf
$INCLUDE clients.conf
thread pool {
start_servers = 5
max_servers = 32
min_spare_servers = 3
max_spare_servers = 10
max_requests_per_server = 0
auto_limit_acct = no
}
modules {
$INCLUDE mods-enabled/
}
instantiate {
}
policy {
$INCLUDE policy.d/
}
$INCLUDE sites-enabled/
#--authorize. UPDATE THE PASSWORDS TO SOMETHING OF YOUR CHOSING
rad_adm Cleartext-Password := "supersecretpasswordforadmins"
F5-LTM-User-Role = 0,
F5-LTM-User-Info-1 = mgmt,
F5-LTM-User-Partition = Common,
F5-LTM-User-Shell = tmsh
rad_guest Cleartext-Password := "supersecretpasswordforguests"
F5-LTM-User-Role = 700,
F5-LTM-User-Info-1 = mgmt,
F5-LTM-User-Partition = Common,
F5-LTM-User-Shell = tmsh
#--clients.conf
client localhost {
ipaddr = 10.244.0.0/16 #--Set this to the IP range of your pod network
secret = somelongandcomplicatedstringofrandomgibberish #--Update this to something of your choice
require_message_authenticator = no
nastype = other
}
Note: Pay particular attention to the ipaddr attribute in your clients.conf. As RADIUS requests are going to be coming from the UniFi controller and this could be running on any Pod, you will need to consider the entire address space that your Pods could be running within. As I am using an overlay network I have allowed the entire overlay subnet, this is far from ideal and presents a significant security issue if running in the real world.
Deploying freeradius
With these configuration files set up, let’s deploy freeradius:
#--freeradius.yaml
kind: Deployment
apiVersion: apps/v1
metadata:
name: freeradius
namespace: freeradius
spec:
replicas: 2
selector:
matchLabels:
name: freeradius
template:
metadata:
name: freeradius
labels:
name: freeradius
spec:
volumes:
- name: raddb-files
configMap:
name: freeradius-files
optional: true
- name: raddb-secrets
secret:
defaultMode: 420
secretName: freeradius-secrets
- name: radius-server-certificate
secret:
defaultMode: 420
secretName: freeradius-server-certificate
containers:
- name: freeradius
image: 'freeradius/freeradius-server:latest-alpine'
ports:
- containerPort: 1812
protocol: UDP
- containerPort: 1813
protocol: UDP
volumeMounts:
- name: raddb-secrets
mountPath: /etc/raddb/mods-config/files/authorize
subPath: authorize
readOnly: true
- name: raddb-secrets
mountPath: /etc/raddb/clients.conf
subPath: clients.conf
readOnly: true
- name: raddb-files
mountPath: /etc/raddb/radiusd.conf
subPath: radiusd.conf
readOnly: true
- mountPath: /etc/raddb/mods-enabled/eap
name: raddb-files
readOnly: true
subPath: eap
- mountPath: /etc/ssl/certs/ca.crt
name: radius-server-certificate
readOnly: true
subPath: ca.crt
- mountPath: /etc/ssl/certs/tls.crt
name: radius-server-certificate
readOnly: true
subPath: tls.crt
- mountPath: /etc/ssl/private/tls.key
name: radius-server-certificate
readOnly: true
subPath: tls.key
---
kind: Service
apiVersion: v1
metadata:
name: lb-freeradius
namespace: radius
annotations:
metallb.universe.tf/allow-shared-ip: 'true'
spec:
ports:
- name: 'radius'
protocol: UDP
port: 1812
targetPort: 1812
- name: 'radius-acct'
protocol: UDP
port: 1813
targetPort: 1813
selector:
name: freeradius
type: LoadBalancer
loadBalancerIP: 10.0.0.199 #--Set as appropriate for your loadbalancer
Note here that we are exposing the service as a LoadBalancer which means exposing it to services outside of the Kubernetes cluster. This is not exactly desirable as the only client we want to interact with our RADIUS is UniFi and this would be ideally done via the Pod network the same as our client requests, however, the UniFi console only allows us to configure a RADIUS connection via a single IP address. This rules out using a ClusterIP which would be preferable as we cannot make our requests via hostname, less than ideal and it will add latency to each of our requests.
#--server-certificate.yaml
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: freeradius
namespace: freeradius
spec:
isCA: false
subject:
organizations:
- tinfoilcipher
organizationalUnits:
- Ops
countries:
- GB
dnsNames:
- freeradius.freeradius.svc.cluster.local #--Include ClusterIP in SAN
- freeradius.tinfoilcipher.co.uk #--Update as suitable for your domain
secretName: freeradius-server-certificate
usages:
- client auth
privateKey:
algorithm: RSA
encoding: PKCS1
size: 2048
issuerRef:
name: ca-issuer #--Update issuer details
kind: ClusterIssuer #--as suitable to
group: cert-manager.io #--your cluster
kubectl create ns freeradius
# namespace/freeradius created
kubectl create configmap -n freeradius \
freeradius-files --from-file eap --from-file radiusd.conf
# configmap/freeradius-files created
kubectl create secret generic -n freeradius \
freeradius-secrets --from-file authorize --from-file clients.conf
# secret/freeradius-secrets created
kubectl apply -f server-certificate.yaml
# certificate.cert-manager.io/freeradius created
kubectl apply -f freeradius.yaml
# deployment.apps/freeradius created
# service/lb-freeradius created
and finally verify that our server is up and running:
kubectl get po -n freeradius
# NAME READY STATUS RESTARTS AGE
# freeradius-5db9ab96b4-rbf12 1/1 Running 0 4m
kubectl get svc -n freeradius
# NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
# freeradius LoadBalancer 10.107.204.88 10.0.0.199 1812:31508/UDP,1813:30370/UDP 4m
Configure The UniFi Controller

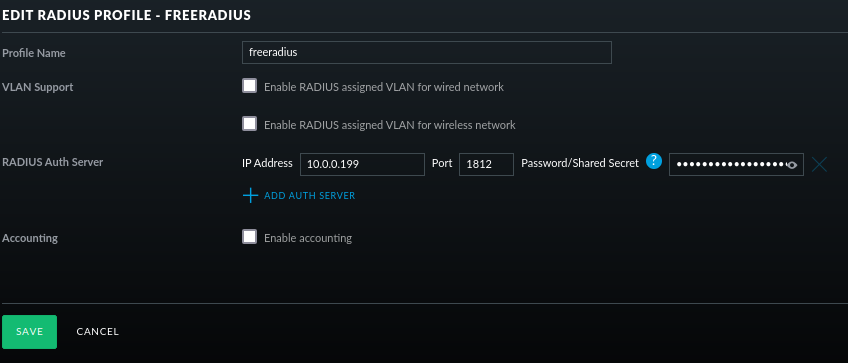

Within the UniFi console, configure a RADIUS profile under Settings > Profiles and configured as below, noting that:
-
The IP Address should correspond to the freeradius Servic_e External IP as shown above
-
The Shared Secret should correspond to the secret configured in client.conf earlier

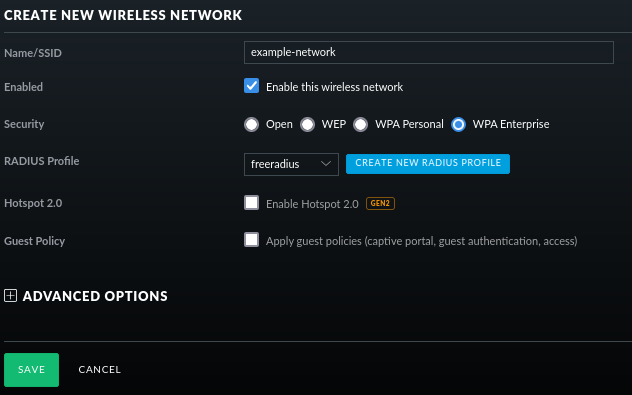

With the profile set up, ensure that it is attached to a SSID using WPA Enterprise:
Issuing Client Certificates
With the PKI, RADIUS and WPA Enterprise SSID now all in place, we can finally start connecting WiFi clients. To issue a new client certificate:
#--client-certificate.yaml
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: somelaptop
namespace: client-certificates
spec:
isCA: false
duration: 26280h #--1 year. Really this is too long but practical, as
subject: #--we have no innate means of rotating certificates.
organizations:
- tinfoilcipher
organizationalUnits:
- Ops
countries:
- GB
dnsNames:
- somelaptop.tinfoilcipher.co.uk
secretName: somelaptop
usages:
- client auth
privateKey:
algorithm: RSA
encoding: PKCS1
size: 2048
issuerRef:
name: ca-issuer
kind: ClusterIssuer
group: cert-manager.io
kubectl create namespace client-certificates
kubectl apply -f client-certificate.yaml
# certificate.cert-manager.io/somelaptop created
kubectl get secret -n client-certificates somelaptop-certificate -o json | jq -r '.data."tls.crt"' | base64 -d >> somelaptop.crt
kubectl get secret -n client-certificates somelaptop-certificate -o json | jq -r '.data."tls.key"' | base64 -d >> somelaptop.key
kubectl get secret -n client-certificates somelaptop-certificate -o json | jq -r '.data."ca.crt"' | base64 -d >> ca.crt
openssl pkcs12 -export -in somelaptop.crt -inkey somelaptop.key -name somelaptop.tinfoilcipher.co.uk -CAfile ca.crt -out somelaptop.p12
# Enter passphrase: ***************************
rm ca.crt somelaptop.key somelaptop.crt
This process will produce a PKCS12 file (or .p12 file) which can be used by most clients to connect to your newly created WPA Enterprise network. That was simple wasn’t it!
