In the last post we took a look at some of the fundamentals of Crossplane v2, specifically how authentication and integration with AWS (and cloud providers more broadly) is handled now. There is a lot more to cover though, last time we only got around to creating some basic resources. In this post we’re going to look at how we can leverage the main offering of Crossplane; Composition, giving us the ability to create our own CRDs and Managed Resource templates.
The sample code for this article can be found here.
What Do We Have So Far
Throughout this article we will be using several of the components that we set up in Part 1 of this guide:
- A DeploymentRuntimeConfig called aws which uses an existing IRSA role
- A Provider called provider-aws-s3, using the provider-aws-s3:v2.1.0 Package which consumes the aws DeploymentRuntimeConfig
- A ClusterRole and ClusterRoleBinding to handle ServiceAccount permissions for our Provider
- Namespaces for multiple tenants, named tenant1 and tenant2
- Namespaced ProviderConfigs, one for for each Namespace. Both using the provider-aws-s3 Provider and authenticating using IRSA
We won’t cover what each of these is for, it’s all in the previous article.
Composition. It’s Templates All The Way Down!
So what is Composition? From the Crossplane documentation:
Crossplane’s key value is that it unlocks the benefits of building your own Kubernetes custom resources without having to write controllers for them. - https://docs.crossplane.io/latest/whats-crossplane/
This “key value” is achieved via a templating system called Composition which allows us, as platform administrators, to create our own pre-templated, resource sets and serve them to tenants as custom CRDs. The below diagram breaks this down in a bit more clarity:

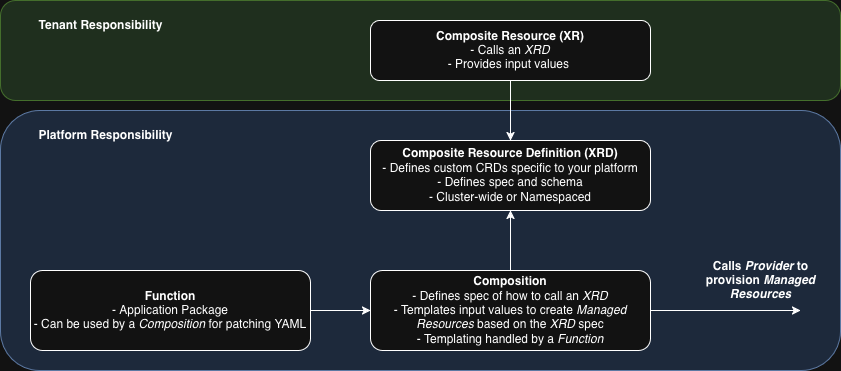

As the diagram above shows, there are 4 key concepts to think about when working with Composition and they introduce a lot of new terminology:
- Composite Resource Definitions - These objects define the spec and schema for new platform-specific CRDs , which Crossplane called XRDs. These can be either Cluster-wide or Namespaced.
- Compositions - These objects define the spec for calling an XRD, including how we will handle inputs and templating. It also defines the exact Managed Resources to be provisioned by our Provider.
- Composite Resources - These objects, which Crossplane also calls XRs, are used to call an XRD and their creation will result in the provisioning of the Managed Resources defined in an available Composition. Unlike the other objects above, these are intended to be provisioned by tenants of your platform.
- Functions - Like Packages, these are external packages which offer extended functionality to Crossplane. Whilst their purpose is not solely part of Composition, we cannot practically use a Composition without them. Functions are used here for templating purposes, allowing us to Patch YAML manifests using input values from an XR
That’s a lot to take in, so let’s go through how to create each one of these components in a real world example. Our goal is going to be to offer a single Composite Resource to our platform tenants which:
- Creates an S3 Bucket
- Encrypts the Bucket using a provided KMS Key ID
- Tags the Bucket, using a provided set of tags
- Enables or disables versioning on request
Composite Resource Definition
The below manifest contains our XRD, additional comments have been added to break down it’s complexity but broadly this configuration is creating an input spec for a new kind of custom resource offering which will be served at a new endpoint specific to our platform; s3buckets.aws.platform.tinfoilcipher.com, with an object kind of S3Bucket and a strict set of allowed inputs:
# 01-xrd.yaml
apiVersion: apiextensions.crossplane.io/v2
kind: CompositeResourceDefinition
metadata:
name: s3buckets.aws.platform.tinfoilcipher.com #--Platform specific endpoint
spec:
group: aws.platform.tinfoilcipher.com
names:
kind: S3Bucket #--Object Kind, E.G. kubectl get S3Bucket
plural: s3buckets #--Kind plural. E.G. kubectl get s3buckets
scope: Namespaced #--Namespaced or cluster-wide. For a multi tenant system, this should be offered to tenant namespaces
versions:
- name: v1alpha1 #--Current version you are releasing
schema:
openAPIV3Schema:
type: object
properties:
spec:
type: object
properties:
parameters: #--Paramaters object, defines input params
type: object
properties:
bucketName: #--User input
type: string
region: #--User input
type: string
versioning: #--User input
type: bool
kmsKeyID: #--User input
type: number
required: #--Mandatory inputs
- bucketName
- region
- kmsKeyID
tags: #--Tags objects, defines a blank map for tags
type: object
additionalProperties:
type: string
required: #--Mandatory objects. Tags are optional
- parameters
Apply with:
kubectl apply -f 01-xrd.yaml
# compositeresourcedefinition.apiextensions.crossplane.io/s3buckets.aws.platform.tinfoilcipher.com created
kubectl get compositeresourcedefinition
# NAME ESTABLISHED OFFERED AGE
# s3buckets.aws.platform.tinfoilcipher.com True 1m
Function and Composition
The below manifest contains our Function. This will download an external package which will be used to patch in templated values to our Composition:
#--02-function.yaml
apiVersion: pkg.crossplane.io/v1
kind: Function
metadata:
name: patch-and-transform #--Name of your choice
spec:
package: ghcr.io/crossplane-contrib/function-patch-and-transform:v0.9.0 #--https://github.com/orgs/crossplane-contrib/packages
Apply with:
kubectl apply -f 02-function.yaml
# function.pkg.crossplane.io/patch-and-transform created
kubectl get function
# NAME INSTALLED HEALTHY PACKAGE AGE
# patch-and-transform True True ghcr.io/crossplane-contrib/function-patch-and-transform:v0.9.0 2m
With the Function installed we can create our Composition. When you send an XR request to your newly created XRD with some input values:
- The XRD will pass the request to a Composition in order to actually provision Managed Resources.
- The Managed Resources are provisioned based on a serious of steps defined within a Pipeline within the Composition, in a similar manner to a CI/CD pipeline.
- Your chosen Function is used to handle your input values and Patch them in to the YAML spec for your Compositions Managed Resources (we’ve already touched on how Managed Resources work generally in last post, so we won’t cover them here again).
All of this together creates a system where multiple *Managed Resources can be templated in one action from a single resource.
Let’s take a look at how our Composition manifest looks, with comments to expand on it’s functionality:
# 03-composition.yaml
apiVersion: apiextensions.crossplane.io/v1
kind: Composition
metadata:
name: s3bucket.aws.platform.tinfoilcipher.com #--Composition name
labels:
aws.platform.tinfoilcipher.com/composition: s3bucket #--Label to identify this Composition
spec:
compositeTypeRef:
apiVersion: aws.platform.tinfoilcipher.com/v1alpha1 #--XRD Endpoint
kind: S3Bucket #--XRD Kind
mode: Pipeline
pipeline: #--Pipeline of steps to create Managed Resources
- step: create-bucket #--Pipeline step (everything in this example is handled in one big step)
functionRef:
name: patch-and-transform #--Previously created function
input:
apiVersion: pt.fn.crossplane.io/v1beta1 #--Function (patch-and-transform) endpoint
kind: Resources
resources:
#--Managed resources to be created--#
#--https://marketplace.upbound.io/providers/upbound/provider-aws-s3/v2.1.1/resources/s3.aws.m.upbound.io/Bucket/v1beta1
- name: s3-bucket
base:
apiVersion: s3.aws.m.upbound.io/v1beta1 #--Namespaced S3 endpoint
kind: Bucket #--S3 Bucket resource
spec:
forProvider:
#--Static configuration elements
forceDestroy: false
providerConfigRef:
kind: ProviderConfig
name: aws-s3 #--Existing Namespaced ProviderConfig
#--Patches take input values from an XR and pass them through
#--the XRD spec and in to the Composition.
#--E.G. the XRs input value in spec.parameters.region is used to
#--patch spec.forProvider.region in the Composition
patches:
- fromFieldPath: "spec.parameters.bucketName"
toFieldPath: "metadata.name"
#--Applies the label aws.platform.tinfoilcipher.com/bucket_name based on input value to the newly created bucket object.
#--Since Crossplane Managed Resources are just regular k8s objects, they can have labels applied to them like any
#--other object.
- fromFieldPath: "spec.parameters.bucketName"
toFieldPath: "metadata.labels['aws.platform.tinfoilcipher.com/bucket_name']"
- fromFieldPath: "spec.parameters.region"
toFieldPath: "spec.forProvider.region"
- fromFieldPath: "spec.tags"
toFieldPath: "spec.forProvider.tags"
#--A second resource is created in the pipeline. Configuring versioning
#--https://marketplace.upbound.io/providers/upbound/provider-aws-s3/v2.1.1/resources/s3.aws.m.upbound.io/BucketVersioning/v1beta1
- name: s3-bucket-versioning
base:
apiVersion: s3.aws.m.upbound.io/v1beta1
kind: BucketVersioning
spec:
providerConfigRef:
kind: ProviderConfig
name: aws-s3
patches:
- fromFieldPath: "spec.parameters.region"
toFieldPath: "spec.forProvider.region"
- fromFieldPath: "spec.parameters.versioning"
toFieldPath: "spec.forProvider.versioningConfiguration.status"
- fromFieldPath: "spec.parameters.bucketName"
toFieldPath: "metadata.labels['aws.platform.tinfoilcipher.com/bucket_name']"
#--The bucketSelector function matches the label for our existing Bucket resource created in the previous
#--action. Labels are the preferred method for looking up existing or newly provisioned Managed Resources.
- fromFieldPath: "spec.parameters.bucketName"
toFieldPath: "spec.forProvider.bucketSelector.matchLabels['aws.platform.tinfoilcipher.com/bucket_name']"
#--A third resource is created in the pipeline. Configuring encryption with a provided key
#--https://marketplace.upbound.io/providers/upbound/provider-aws-s3/v2.1.1/resources/s3.aws.m.upbound.io/BucketServerSideEncryptionConfiguration/v1beta1
- name: s3-bucket-encryption
base:
apiVersion: s3.aws.m.upbound.io/v1beta1
kind: BucketServerSideEncryptionConfiguration
spec:
forProvider:
#--Static configuration elements
rule:
- applyServerSideEncryptionByDefault:
sseAlgorithm: aws:kms
providerConfigRef:
kind: ProviderConfig
name: aws-s3
patches:
- fromFieldPath: "spec.parameters.region"
toFieldPath: "spec.forProvider.region"
- fromFieldPath: "spec.parameters.bucketName"
toFieldPath: "metadata.labels['aws.platform.tinfoilcipher.com/bucket_name']"
- fromFieldPath: "spec.parameters.kmsKeyID"
toFieldPath: "spec.forProvider.rule[0].applyServerSideEncryptionByDefault.kmsMasterKeyId" #--KMS Key Input
#--The same label lookup as before to locate the correct Bucket
- fromFieldPath: "spec.parameters.bucketName"
toFieldPath: "spec.forProvider.bucketSelector.matchLabels['aws.platform.tinfoilcipher.com/bucket_name']"
Apply with:
kubectl apply -f 03-composition.yaml
# composition.apiextensions.crossplane.io/s3bucket.aws.platform.tinfoilcipher.com created
kubectl get composition
# NAME XR-KIND XR-APIVERSION AGE
# s3bucket.aws.platform.tinfoilcipher.com S3Bucket aws.platform.tinfoilcipher.com/v1alpha1 2m
Resource Dependencies, Labels and Selectors
That’s a lot of YAML, comments and templating to take in. One thing that might get lost is the important role that Kubernetes Labels and Selectors play in making this Pipeline work. Since Managed Resources are just the same as any other Kubernetes object, they can have Labels applied to them and can be looked up using Selectors. This lookup method is how Crossplane handles forward dependencies during Composition.
Crossplane leverages this existing Labeling functionality in it’s Composition Pipeline by applying Labels to each Managed Resources it creates and then allowing downstream Managed Resources to look up existing ones via Selectors. This allows for XRDs where Managed Resources can be created that rely on the outputs of other Managed Resources earlier in the same pipeline, including relying on outputs which are not yet known at run time.

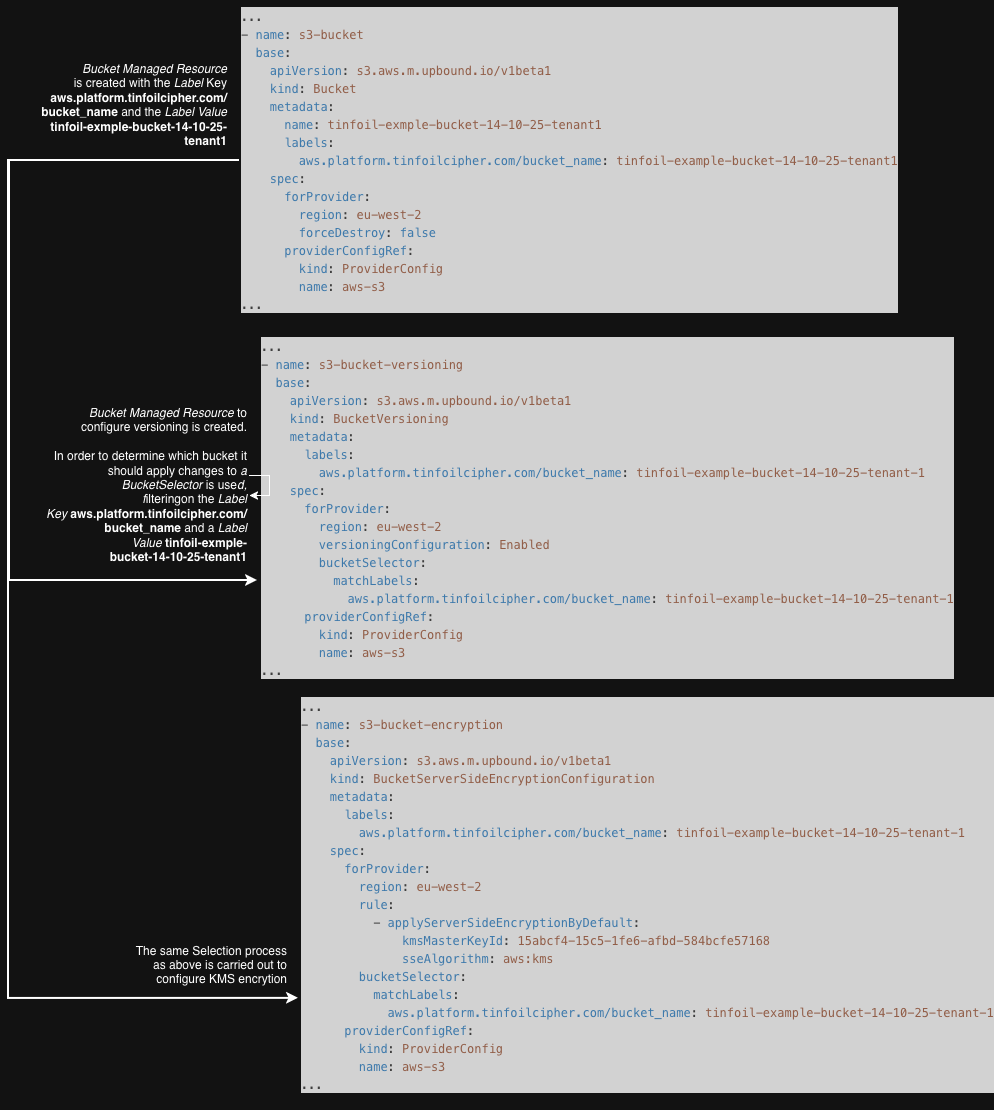

The below diagram breaks down how this is done in the example Composition above, for the sake of making things easier to read, I have fully rendered the YAML and removed the patches:
Creating a Composite Resource (XR)
With all of this understood, we can finally start making some resources. The manifest below shows two Composite Resources or XRs which call our XRD. Applying this will start off our Composition Pipeline:
# 04-xr.yaml
apiVersion: aws.platform.tinfoilcipher.com/v1alpha1 #--XRD endpoint
kind: S3Bucket #--XRD Kind
metadata:
name: tinfoil-example-bucket-14-10-25-tenant-1 #-Bucket name
namespace: tenant1 #--Tenant namespace
spec:
#--Only explicit input values can be passed to "parameters"
#--as defined in the XRD
parameters:
bucketName: tinfoil-example-bucket-14-10-25-tenant-1
region: eu-west-2
versioning: Enabled
kmsKeyID: 15abcf4-15c5-1fe6-afbd-584bcfe57168
#--Any list of tags can be passed as input values to
#--"tags", as defined in the XRD
tags:
environment: dev
department: devops
---
apiVersion: aws.platform.tinfoilcipher.com/v1alpha1
kind: S3Bucket
metadata:
name: tinfoil-example-bucket-14-10-25-tenant-2
namespace: tenant2
spec:
#--Omitted for brevity
...
Apply with:
kubectl apply -f 04-xr.yaml
# s3bucket.aws.platform.tinfoilcipher.com/tinfoil-example-bucket-14-10-25-tenant-1 created
# s3bucket.aws.platform.tinfoilcipher.com/tinfoil-example-bucket-14-10-25-tenant-2 created
Whilst the Kubernetes objects have been created immediately, the Composition Pipeline will take a short while to run, so the AWS resources will not be ready for a minute or so. After a short wait we can check:
kubectl get s3bucket --all-namespaces
# NAME SYNCED READY COMPOSITION AGE
# tinfoil-example-bucket-14-10-25-tenant-1 True True s3bucket.aws.platform.tinfoilcipher.com 2m03s
# tinfoil-example-bucket-14-10-25-tenant-2 True True s3bucket.aws.platform.tinfoilcipher.com 2m06s

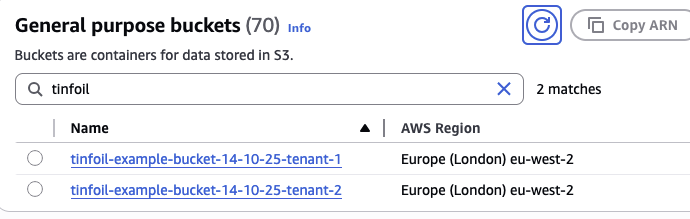

Looking in the console, we can see that the Buckets have been created, and that our configurations have been passed as expected:
How Do Compositions Get Selected?
Something that is easy to miss in that whole dance is that there is no implicit link between the XR and Composition. When we create our XR it calls the XRD endpoint and the Composition Pipeline is triggered, but we have not made any kind of direct request to do that.
When an XR is created, the XRD will attempt to automatically locate a suitable Composition; if there is only a single Composition which calls the XRD then this will work correctly. However if there are several Compositions calling a single XRD (as may be the case in more advanced platforms), or if you just want to be explicit in your intentions, you can pass a Composition Ref as part of your XR.
In the example below, two different XRs are being created, explicitly using different Compositions on the same XRD:
apiVersion: aws.platform.tinfoilcipher.com/v1alpha1
kind: S3Bucket
metadata:
name: tinfoil-example-bucket-14-10-25-tenant-1
namespace: tenant1
spec:
#--Explicitly define
crossplane:
compositionRef:
name: s3bucket.aws.platform.tinfoilcipher.com
...
---
apiVersion: aws.platform.tinfoilcipher.com/v1alpha1
kind: S3Bucket
metadata:
name: tinfoil-example-bucket-14-10-25-tenant-2
namespace: tenant2
spec:
crossplane:
compositionRef:
name: s3bucket-alternative.aws.platform.tinfoilcipher.com
...
If you are working in a scenario where you have multiple Compositions on the same XRD and you don’t pass a Composition Ref, you will hit an exception and your XR will fail to create.
More Functionality?
There is still a lot more lurking inside Crossplane. I’ve not yet touched on scheduling jobs, executing custom code, hardening workflows, passing data between providers or the additional power that comes from the existing library of Functions, but this is more than enough for one post. We’ll try to visit all of this in future posts if there is any interest in it.
